Products - Specification of MonoCrystalline PV modules
 |
||||||||||||||||||||||||
|

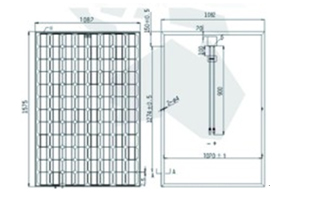

Physical Parameters:
Silicon solar cell : 125mm×125mm
No. of cells : 96pcs (8×12)
Dimension : 1590mm×1064mm×50mm
Weight : 21kg
Tolerance : +/-3%
Electrical Parameters:
STC: Irradiance 1000W/m2 Module temperature 25℃ AM=1.5
Operating temperature : -40℃ to +85℃
Maximum system voltage : 1000VDC
 Environmental Rating:NOTC （Nominal operation cell temperature）: 48℃+/-2℃
Temp. Coeff. Of Isc (TK Isc) : (0.065+/-0.015)%/ ℃
Temp. Coeff. Of Voc (TK Voc) : -0.33%/ ℃
Temp. Coeff. Of Pmax (TK Pmax) : -(0. 4+/-0.05)%/ ℃
Max wind resistance capacity : 60m/s
Max load capacity : 200kg/ m2
Max hail diameter @ 80km/h 25mm
 |
